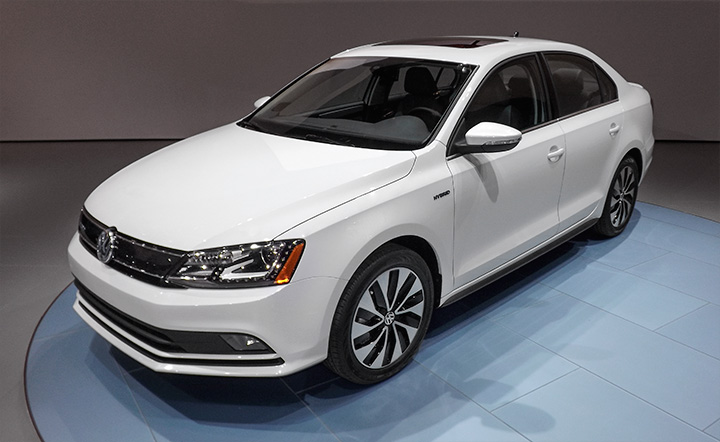

2016 Volkswagen Jetta Hybrid

Print

Click the links below for OEM repair information. (Note: additional purchase is required for a subscription to each OEM's repair information website.)


Yes No Not Identified
Scan Tool Required X
HV DVOM Required X

Accessing Disable Procedure

To find the Volkswagen High-Voltage Disable Procedures:

  1. Go to www.erwin.vw.com
  2. Enter username and password (right side of page)
  3. Click Login
  4. Click OK (pop up window)
  5. Click Service Information (tabs across the top of page)
  6. Click Vehicle Identification Number or select Guided Search (tabs in center of the webpage)
  7. Enter the VIN (vehicle identification number) or select Year and Model (guided search)
  8. Category 1 select Repair Manual
  9. Leave Category 2 blank
  10. Click Search
  11. From the list, select Electrical System Hybrid
  12. Click OK (pop up window)
  13. Scroll down to the last page and click OK
  14. Scroll down to the table of contents and click High Voltage System, De-Energizing




Hybrid Welding Best Practices

When welding on an HEV or EV, follow the same precautions as when welding on a conventional vehicle. In addition, there are precautions to take with the high-voltage battery. As a best practice, disconnect both the 12 V battery and the high-voltage battery service disconnect. (Note: Always disable the high-voltage battery following the vehicle makers repair information and follow all safety precautions.)


Refinish Precautions

"High temperatures such as spraybooth bake cycles can affect the performance and life of high-voltage batteries. Volkswagen states Risk of damaging the battery cells at too high of drying temperatures! Observe the maximum drying time of 30 minutes at a drying temperature of 80°C (176°F). Observe the maximum drying time of 45 minutes at a drying temperature of 60°C (140°F). Protect all high-voltage components from direct infrared radiation when IR drying."


SEARCH

* This matrix does not currently contain all production vehicles sold in the United States. Please refer back to this page frequently for the most up-to-date information. The following OEM specific repair information was identified from the vehicle makers’ repair information. The contents are based on the information available from the vehicle maker. Updates and additions will be posted as they become available. To ensure that the most recent information is used, always refer to the vehicle maker's technical information when disabling and working on hybrid vehicles.
